The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.

Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready compact Graphics Card
- Metal Backplate
- BladeLink Fans



 Specifications

• GPU

NVIDIA GeForce RTX 5060 GPU

• CUDA cores

3840

• Video Memory

8GB GDDR7

• Memory Bus

128-bit

• Engine Clock

2497 MHz

• Memory Clock

28 Gbps

• PCI Express

PCI Express 5.0 x8

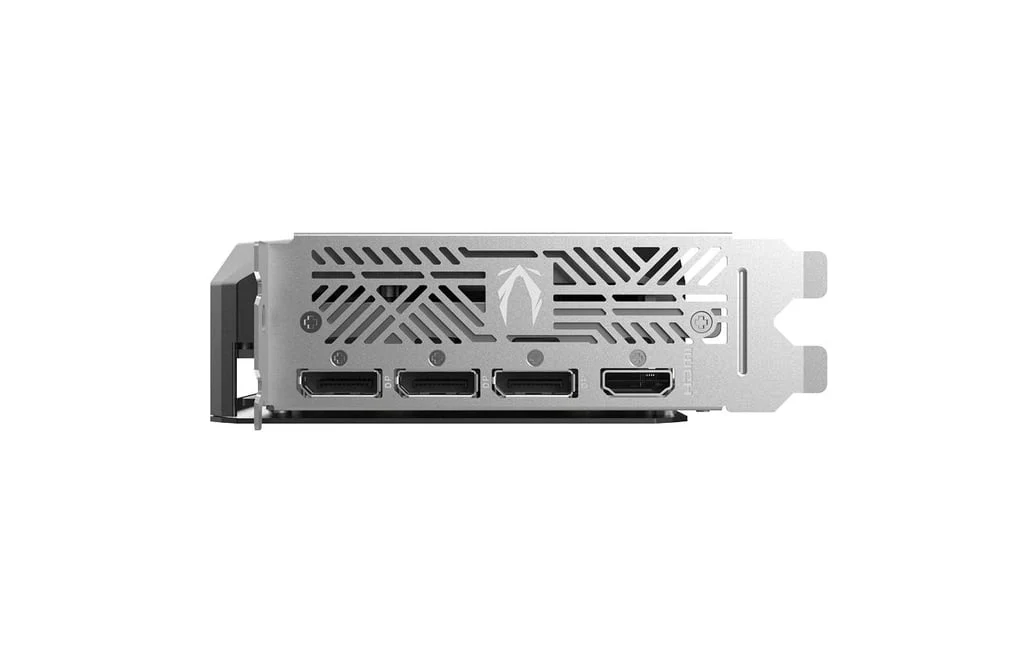

• Display Outputs

3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

• HDCP Support

2.3

• Multi Display Capability

Quad Display

• Recommended Power Supply

550W

• Power Consumption

145W

• Power Input

1 x 8-pin power input

• DirectX

Microsoft DirectX® 12 Ultimate

• OpenGL

4.6

• Cooling

Air Cooled

• Slot Size

2

• SLI

No

• Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

• Card Length

220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
